External roller blinds are a highly functional solution which is frequently used for public and residential buildings alike.
Our basic line of screen is Easy roller blinds. Depending on the installation conditions and assumptions sometimes it’s necessary to use a different system – e.g. when a top-mounted system, bent sheet metal guards or a spring drive are required.
In this case, Aluprof’s SkyRoll roller blinds system comes in handy.
The main advantage of these blinds is the protection they provide interiors against exposure to the sun as a result of their specialist, technical fabrics. They also provide privacy by stopping people outside from seeing in, while giving users an excellent view out. In addition, they offer optical comfort by acting as an effective barrier to exterior light and minimising the screen glare it can trigger.
With the right choice of fabric, external roller blinds become a stylish accessory, adding a unique decorative flourish to a building. It is worth noting that, when properly chosen, they can also function as efficient insect screens, keeping interiors ‘bug-free’.
The SkyRoll version is available in three variants: SkyRoll ZIP, SkyRoll CLASSIC and SkyRoll ECO, in various types of construction
Control
Versatility of solutions
Screes in the SkyRoll Zip and SkyRoll Classic systems have been fully automated. It is possible to use Aluprof’s motors from AM, DM series (only in S and R version) and dedicated Somfy drives, which are available in versions: with mechanical or electronic limit switches, with radio receiver as well as with detection of obstacles. Depending on project requirements, they can be operated individually, centrally, in groups or with dedicated solar or wind sensors.
Wide range of products
The screens can be controlled by wall-mounted or mobile transmitters with a control function for one or more devices, by remote controls with timer or by a control panel managing the entire home automation system TAHOMA by Somfy, allowing to create different types of scenarios tailored to users’ needs. Aluprof has created its own extensive collection of AM and DM series controls. In addition, the offer also includes Somfy control elements.
Visualizations
Fabrics
Advanced technology
Materials from which the technical fabrics are made are very resistant to everyday use, deformation, tearing, as well as weather conditions (rain, UV radiation, wind, etc. ). The multitude of colours and variety of fabrics make the screens an interesting architectural addition, which allows the object to fit in with the surrounding reality. Importantly, the correct choice of dyes used in the fabrics guarantees colour fastness for many years of use. In SkyRoll systems it is possible to use technical fabrics from any manufacturer. We particularly recommends products from Copaco, Serge Ferrari and Dickson
Premium quality
Due to their reflective, transmissive, permeable and absorptive properties, the specialized fabrics used in screens inhibit the formation of the greenhouse effect inside the room, which helps to maintain a constant, comfortable temperature while providing good visibility to the outside. An important element is the choice of the appropriate degree of fabric opening, which is determined by the Of factor. It determines the number of openings per 1 m² of fabric, thus indicating its translucency. The greater the number of openings, the greater the light transmission into the room. This is particularly important when installing screens in office buildings, where it is necessary to guarantee access to visible light and thus adequate optical comfort.
Available colours
SYSTEMY
The SkyRoll ZIP system is the latest generation product designed for shading rooms with large glazed surfaces. It is extremely innovative due to the use of technology borrowed from the zipper mechanism on the edges of the fabric. Specially designed two-part guide channels are thus directly integrated into the fabric, which guarantees maximum sealing and protection against insects. In addition, the solution used here ensures that the fabric is properly tensioned and firmly seated in the guide channel, which protects it especially against gusty winds.
The product is available in front-mounted, flush-mounted or top-mounted variants. Depending on the version of the selected product, the offer includes construction elements made of aluminium sheet, PVC or extruded aluminium. The use of the latter material ensures durability and strength for years of use, and also allows for painting in any RAL colour and matching the sunshade to the window joinery or building facade. Unlike other products of this type available on the market, the SkyRoll Zip is equipped with a telescopic handle, which ensures simple and quick assembly, disassembly of the system and collision-free service access. Manual control is not possible.
The maximum dimension is 5000 x 5000 mm (16m²)
Characteristic
A special adapter for the actuator ensures better winding by shortening the pipe in relation to the box.
The mounting block in the closed position ensures easy assembly, disassembly and service access.
Special chamber designed for the seal in the bottom beam guarantees protection against insects.
The use of a zipper mechanism enables direct integration of the fabric with the guideway
SkyRoll Classic is the most popular system in the family of screen type roller shutters, which is designed both for use in public buildings as well as in modern residential buildings. This product perfectly reduces solar radiation without sacrificing natural daylight, providing optimum protection against overheating. In this system there is no direct integration of the fabric with the guide channel. The product is available in front-mounted, flush-mounted or top-mounted variant.
Depending on the version of the selected product, the offer includes construction elements made of aluminium sheet, PVC or extruded aluminium and were adopted mainly from SkyRoll Zip system. This is extremely important for manufacturers, as it allows the use of most components such as guide channels, round reel or bottom rail and thus optimises stock levels. This solution is also equipped with a telescopic cap for the round reel, providing installers with fast assembly, disassembly, and non-invasive service access. This holder can also be used with roller shutters. Manual control is not possible.
The maximum dimension is 5000 x 5000 mm (16m²).
Characteristic
No direct integration between the fabric and the guide.
Mounting locking in the closed position, which ensures easy assembly, disassembly and service access.
Structural elements such as the guide, winding tube or load beam have been adapted from the ZIP system.
SkyRoll ECO is a low-budget solution designed for less demanding investors. This product is perfect for buildings that need permanent sun protection, as well as on balconies, summerhouses or pergolas. The characteristic feature of the screen is the manual control with a spring system. It is also equipped with an intuitive mechanism ALU-CLICK for convenient closing and opening of the insect screen, which makes its use very simple and does not require a lot of effort. When closing it is enough to gently close the endslat. The product is available in front-mounted or flush-mounted variant. Depending on the version of the selected product, the offer includes construction elements made of aluminium sheet or extruded aluminium.
The SkyRoll ECO has a dedicated guide channel that is integrated into the fabric, additionally protecting the interior from insects. The bottom list was adopted from the MKT insect screen system, which allows for the optimisation of stock levels. Thanks to the use of a telescopic cap in the round reel, the assembly and disassembly of the screen is very quick and easy, which is important during possible maintenance. As in the case of the ZIP and CLASSIC versions, this cap can also be used for roller shutters where SW40 reel is used or, thanks to adapters, also for SW50 and SW60 versions.
The maximum dimension is 2000 x 2500 mm.
Characteristic
Cover can act as a mosquito net thanks to the dedicated guide, which is integrated with the fabric.
Locking the mounting in the closed position, which ensures easy assembly, disassembly and service access.
The AluClick mechanism ensures comfortable and simple operation.
CONSTRUCTION POSSIBILITIES
SRS90
Front mounted system SRS90
Main features: – 90 degree box of folded sheet metal

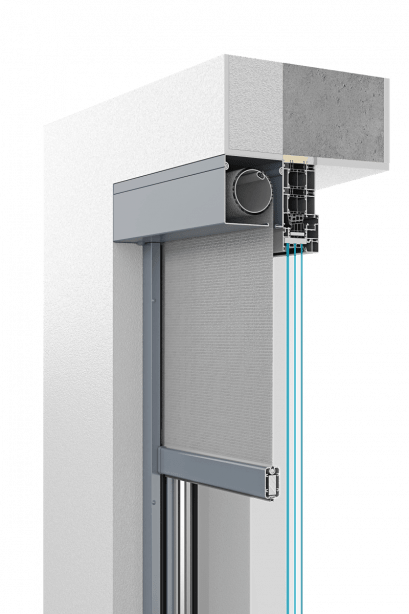

SRS90E
Front mounted system SRS90E
Main features:
– 90 degree extruded aluminum box

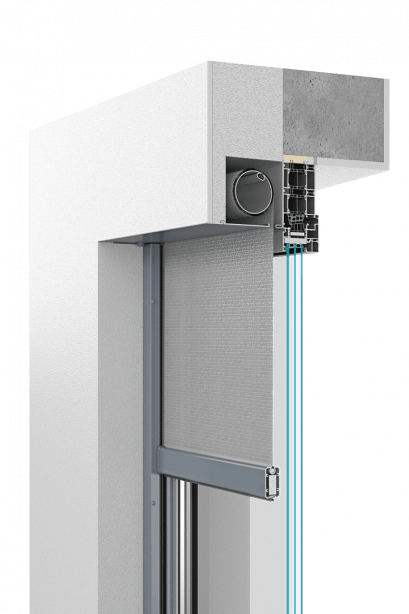

SRS90_SP
Flush-mounted system SRS90_SP
Main features:
– 90 degree folded sheet box for building in

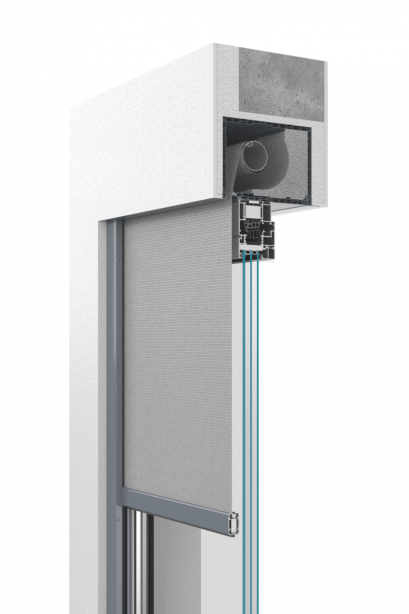

SRS/SKT
Top-mounted system SRS/SKT
Main features:
– box in the SKT top-mounted system

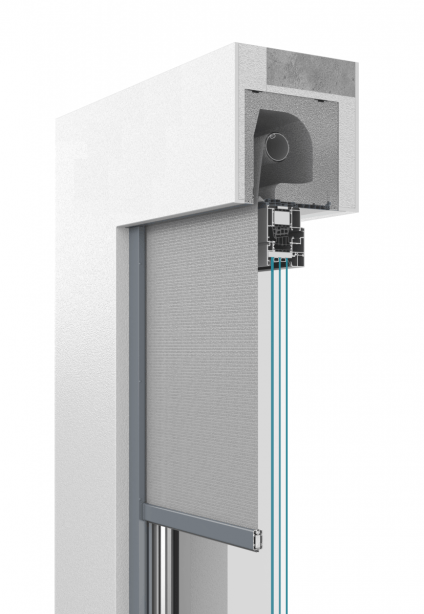

SRS/SKB
Top-mounted system SRS/ KB
Main features:
– top box in the SKB system
Tekst i foto : sunprotect.aluprof.com | aluprof.eu
